Reelcraft EA32122 L10A 115 V AC Motor Driven Hose Reel

Reelcraft EA32122 L10A 115 V AC motor driven hose reels are designed for rugged, heavy duty applications requiring long lengths of hose and large storage capacity. All-bolted unitized construction with no welds to fatigue, full flow swivel and heavy gauge steel frame, spool and drum ensure longest service life. Series 30000’s vibration-proof, self-locking fasteners are ideal for industrial or field use such as turf care or pest control.

  • Hose replacement made easy - the goose neck can easily be removed to simplify adding long lengths of hose to the reel.
  • Full flow stress free swivel design - The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life.
  • Quality finish and corrosion resistant - Individually powder coated components offer the maximum protection from premature corrosion.
  • Motor options - Multiple motor options provide an easy method to rewind long lengths of hose.

Reel Specifications
Part Number EA32122 L10A
Series 30000
Weight (lbs) 85
Hose I.D. (in) 1/2"
Hose O.D. (in) .750
Hose Length (ft) 400
Pressure (psi) 1000
Hose End (in)
Inlet (in) 1/2 NPT(F)
Reel Outlet (in) 1/2 NPT(F)
Hose Included No
Max Temperature (°F) 250
Fluid Path Materials
Seal Type Buna N
Swivel Material Steel
Shaft Material Ductile Iron
Gooseneck Material Ductile Iron

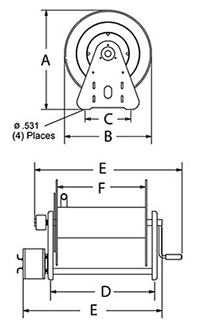

3000 Series Dimensions

A
B
C
D
E
F
20.25"
17.75"
9"
25.75"
33.625"
22"


   Seal Material Compatibility Tables
